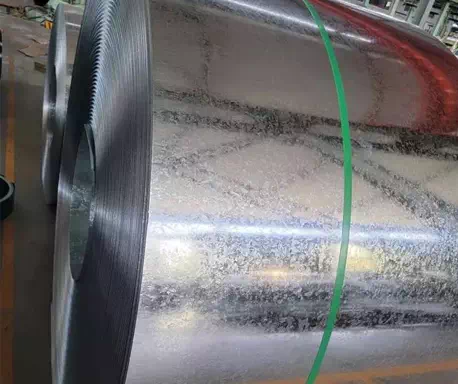

0.12mm Thickness Gi Sheet Galvanized Steel Coil

Galvanized coil is a new type of metal material, is to put a very thin steel plate into the liquefied zinc, through immersion, so that the steel and liquid zinc chemical reaction, so as to attach a thin layer of zinc on the surface of the steel. Galvanized roll is the same reason, of course, is to put the steel plate into the roll to soak and become. Galvanized rolls are widely used and their materials are different.

Inquiry WhatsApp Email
Tel +86-531-88752665

〣DX51D ppgi sheets galvanized steel coil


Galvanized coil is a new type of metal material, is to put a very thin steel plate into the liquefied zinc, through immersion, so that the steel and liquid zinc chemical reaction, so as to attach a thin layer of zinc on the surface of the steel. Galvanized roll is the same reason, of course, is to put the steel plate into the roll to soak and become. Galvanized rolls are widely used and their materials are different.

Due to the different treatment methods in the coating process, the surface state is different, such as ordinary zinc roll, fine zinc roll, flat zinc roll, zinc roll and phosphating surface treatment. The galvanized rolls shall have a good appearance and shall not have any defects harmful to the use of the product, such as no plating, holes, cracks and scum, over plating thickness, abrasion, chromic acid dirt, white rust, etc.

Galvanized coil has good coating tightness and weldability.


Galvanized coil parameters


Product Name

Galvanized Steel Coil Galvanized 0.12mm-6.0mm Thickness Gi Sheet Galvanized Steel Coil Prices

Technical Standard

EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653

Steel Grade

Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement

Type

Coil/Sheet/Plate/Strip

Thickness

0.12-6.00mm,or customer's requirement

Width

600mm-1500mm, according to customer's requirement

Type of Coating

Hot Dipped Galvanized Steel(HDGI)

Zinc Coating

30-275g/m2

Surface Treatment

Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)

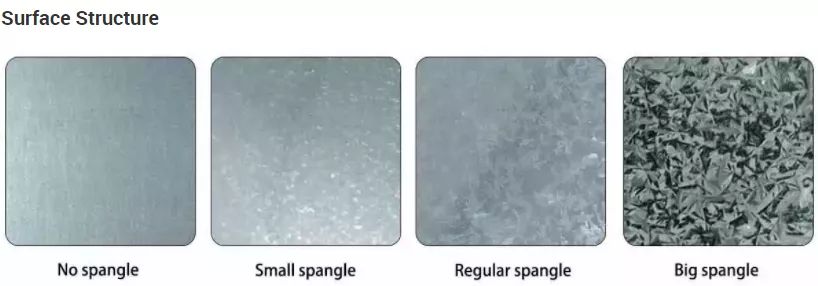

Surface Structure

Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)

Quality

Approved by SGS,ISO

Coil Weight

3-20 metric ton per coil

Package

Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement

Export market

Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc

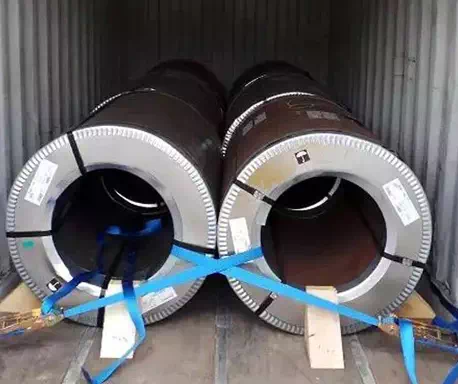

〣Package Delivery

① Packing

1.Generally package:Anti-water paper+strapped with min three strapping strips. 2.Standard exporting package: Anti-water paper and plastic+covered by iron sheet+ strapped withmin three strapping strips. 3.Excellent package:Anti-water paper and plastic film+ covered by iron sheet+ strapped with minthree strapping strips+fixed on the iron or wooden pallets by strapping strips.

② Shipping

1.Shipping by containers

2.Shipping by bulk ship.



〣Factory Show



〣FAQ

Q1:What are your company's main products?

A1: Our main products are Carbon Steel Coil/Sheet,Galvanized Steel Coil/Sheet,Stainless Steel Coil/Sheet, round/square pipe, bar, channel, etc.

Q2: How do you control quality?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.  and we also get ISO,SGS,Alibaba Verified.

Q3:What are the advantages of your company?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

Q4: How to get samples?

A4:FREE samples are available for your checking and testing.  And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
