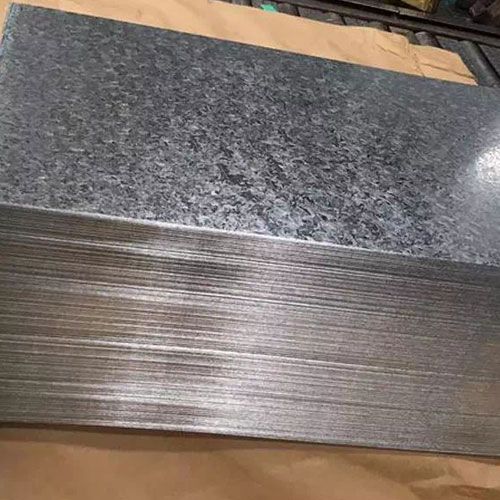

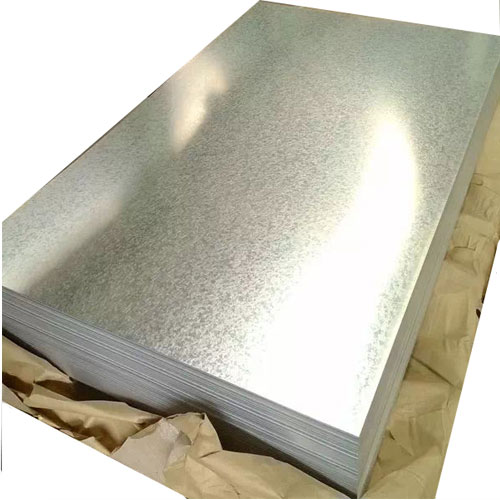

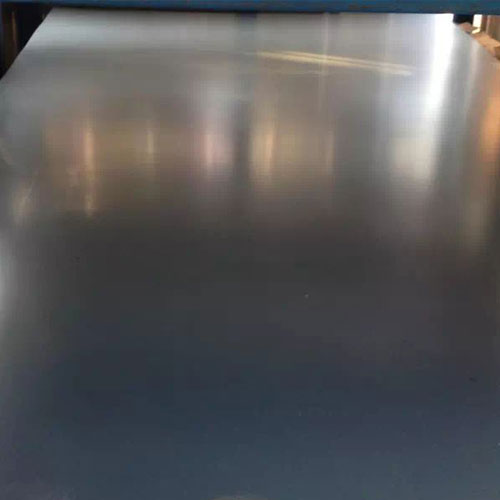

Galvanized Sheet
hot dip galvanized steel plate: dip the thin steel plate into the melted zinc tank and make the surface adhere to a layer of zinc thin steel plate. At present, continuous galvanizing process is mainly used to produce, that is, continuous immersion of rolled steel plate in the melting of zinc in the plating tank to make galvanized steel plate.
〣Classification of galvanized sheet
1. Single-side plating and double-side difference galvanized steel plate: single-side galvanized steel plate, that is, only galvanized products on one side. It has better adaptability than double-sided galvanized sheet in welding, coating, rust prevention and processing. In order to overcome the shortcomings of single side without zinc coating, there is a galvanized sheet coated with a thin layer of zinc on the other side, namely double-sided differential galvanized sheet;
2. Alloyed galvanized steel plate: This steel plate is also manufactured by hot dipping method, but after the trough, it is heated to about 500℃ immediately, so that it generates zinc and iron alloy film. This galvanized sheet has good coating tightness and weldability;
3. Hot dip galvanized steel plate: dip the thin steel plate into the melted zinc tank and make the surface adhere to a layer of zinc thin steel plate. At present, continuous galvanizing process is mainly used to produce, that is, continuous immersion of rolled steel plate in the melting of zinc in the plating tank to make galvanized steel plate;
4. Alloy, composite galvanized steel plate: it is made of zinc and other metals such as aluminum, lead, zinc alloy and composite plated steel plate. The steel plate not only has excellent anti-rust performance, but also has good coating performance;
5. Electric galvanized steel plate: This galvanized steel plate has good workability by electroplating. But the coating is thin, corrosion resistance is not as good as hot dip galvanized sheet;
〣The role of galvanized steel
Galvanized steel plate is to prevent corrosion on the surface of the steel plate to prolong its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc coated steel plate is called galvanized plate.
〣Foreign standard for galvanized sheet
Galvanized steel sheet; JIS G3302-94;
JIS G3312-94 Painted galvanized iron sheet;
Galvanized steel sheet and steel strip; General requirements for hot-dip galvanized sheet steel;
Commercial Grade Hot Dip Galvanized Sheet Steel;
ASTMA 527 -- 90 (75) bite molding grade hot dip galvanized sheet;
ASTMA528 -- 90 deep drawing grade hot dip galvanized steel sheet; Hot dip galvanized steel sheet for roofing and siding;
Astma444-89 hot dip galvanized steel sheet for ditches;
3 Structural Grade Hot Dip Galvanized Sheet Steel;
ASTMA599 -- 92 cold rolled electric galvanized sheet steel;
Astma642-90 hot dip galvanized special deoxidized deep drawing steel sheet;
ΓOCT7118 -- 78 galvanized sheet steel;
Dinen 10142-91 Part 1 Low carbon steel hot dip galvanized steel strips and plates;
Dinen 1012-92 Part 2 Hot dip galvanized sheet steel
〣Product Introduction
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer’s requirement |
| Width | 600mm-1500mm, according to customer’s requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer’s requirement |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
| PROJECT | CHARACTERISTICS OF THE |
| Coating types | Pure zincZinc alloy |
| Surface structure | Zero zinc flower (coating without lead)The small zinc |
| Coating forms | Pure zinc equal thickness coating 40/40-225/225 g/m2Pure zinc differential thickness coating 30-150 (on each side) g/m2Zinc iron alloy coating (equal thickness) 30/30-90/90g/m2 |
| Size range | Cold rolled substrate: thickness of 0.3-3.0mmWidth is 800-1830 – mmHot rolled substrate: thickness of 1.8-2.8mmWidth is 900-1500 – mm |
| Steel grade | Stamping steel: general, stamping, deep drawing, ultra deep drawing, ultra deep drawingStructural steel: 220-550 mpa (yield strength)High strength steel for cold forming: 180-420 mpa (yield strength) |
〣Package Delivery
 |  |  |  |
〣Factory Show
 |  |
〣FAQ
Q: Do you have large amount of steel products in stock?
A: Yes , we have a large-scale indoor warehouse with perennial spot stocks totally above 5000 tons.
Q: How long is the delivery time?
A: Generally it is within 10 days. If the goods is not in stock , according to the quantity it is within 30 days.
Q: Do you provide the samples? Free or Extra? A: The cost of the samples is according to the value.The cost of the freight is necessary.
Q: How to order?
A: Buyer sends the enquery --> Buyer gets the quotation --> Order confirmation --> Buyer send the deposit --> Seller prepares goods --> Seller makes the strict inspection --> Buyer Arranges Balance Payment --> packing and delivery
