〣Product description

304/304L Stainless Steel Angle is a hot rolled stainless steel Angle with inner fillet for all structural applications requiring higher strength and excellent corrosion resistance. 304 stainless steel Angle steel has a durable dull granular finish and is widely used in all types of manufacturing projects exposed to elements such as chemical, acidic, fresh and salt water environments.

〣304 Stainless Steel Angle

SPECIFICATIONS:

304/304L, ASTM A276, QQS-763

FINISH:

Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Fair
Bending / Forming = Good
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 75 ksi; Yield Point = 30 ksi
Elasticity = 28 ksi; Elongation in 2" = 60%;
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

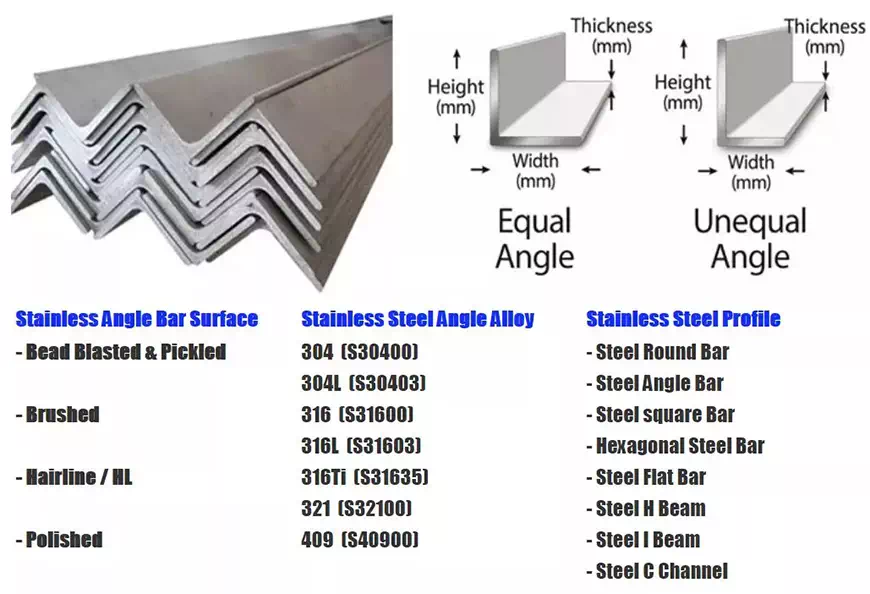

HOW TO MEASURE:

Leg (A) X Leg (B) X Thickness (C) X Length
* Dimensions in Inches

〣304 Stainless Steel Angle details

〣304 Stainless Steel Angle parameter
