1. Specification characteristics and core value of 4×8 galvanized steel plate

1.1 Basic parameters and industry standards

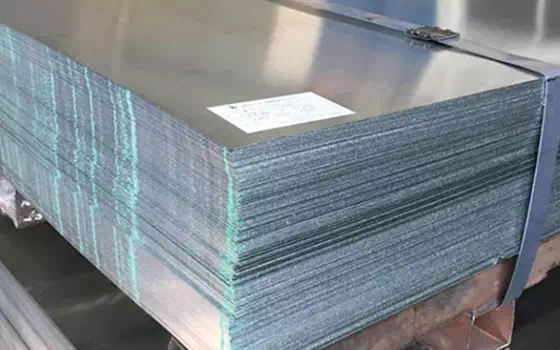

Galvanized steel plate 4×8 specification refers to 1219mm×2438mm (4 ft ×8 ft) standard sheet, thickness range covers 0.2-3.5mm. This specification accounts for 58% of the use of galvanized sheets in the construction industry, and has become the industry standard size because of its consideration of transportation convenience and construction adaptability. According to GB/T 2518 standard, the zinc layer weight is divided into Z18/Z27/Z60 three grades, the corresponding single-side coating amount is 90/135/300g/m².

1.2 Analysis of size advantages

Transportation economy: suitable for standard container loading, loading efficiency is 40% higher than that of special-shaped plate

Construction adaptability: Meet the steel structure purlin 600-1200mm spacing requirements, reduce cutting losses

Machining convenience: CNC punching machine can complete the whole plate processing at one time, improving production efficiency by 30%

2. Innovation of production process system

2.1 Hot dip galvanizing special technology

2.1.1 Optimization of Senjimir method

For the 4×8 specification sheet, the production line adopts the double air knife system (air pressure 0.3-0.5MPa), and the zinc layer thickness error is controlled within ±3g/m². By optimizing the composition of zinc liquid (Zn-0.2%Al-0.03%Mg) in the C618 production line of Baosteel, the size of zinc flower is reduced from the traditional 3-5mm to 0.5-1mm, and the surface roughness is reduced to Ra0.8μm.

2.1.2 Intelligent cutting system

Using laser vision positioning technology, the cutting accuracy of 4×8 plates is ±0.5mm. Through this technology, the refrigerator production line of Midea Group has increased the board utilization rate from 87% to 95%.

2.2 Electrogalvanizing technology innovation

4×8 specification electrogalvanized sheet (SECC) can form 8-12μm coating in 5 minutes at 30A/dm² current density. The new chromium-free passivation technology reduces the hexavalent chromium content from 120mg/m² to 0.1mg/m², and the salt spray resistance time exceeds 1000 hours.

Third, multi-field application scenario analysis

3.1 Innovation cases in the field of architecture

Project name application site Technical parameters economic benefits

Wuhan Tianhe T3 curved roof system Z275 coating +0.6mm thickness maintenance cycle extended to 15 years

Shenzhen Tencent Data center steel structure enclosure 4×8 aluminum plated zinc plate + self-tapping screw connection construction efficiency increased by 40%

Xiongan Citizen Service Center assembled wall panel 1.2mm thick plate + perforated sound absorption processing sound insulation factor of 35dB

3.2 Breakthroughs in industrial manufacturing

Automobile manufacturing: The 4×8 galvanized plate can be formed into the door inner plate after laser welding, and the material utilization rate is 92%

Photovoltaic bracket: 4×8 Zinc-aluminum-magnesium plate (Zn-6%Al-3%Mg), notch corrosion resistance increased by 10 times

Cold chain equipment: 4×8 fingerprint resistant galvanized sheet (AF) surface resistance ≤10⁶Ω, antibacterial rate of 99.9%

4. Quality control and standard system

4.1 Key Quality Inspection Specifications

Zinc layer adhesion detection: X-ray fluorescence method, error ≤±5g/m²

Bending performance test: the zinc layer does not fall off after 180° bending, which is suitable for cold bending of steel structure

Surface roughness control: building plate Ra≤1.6μm, automotive plate Ra≤0.8μm

4.2 Storage and transportation standards

Stacking method: Using well shape pad, stacking height ≤2 layers, to prevent zinc lamination loss

Environmental control: warehouse humidity ≤65%, temperature 10-40℃, equipped with dehumidification unit

Transport protection: EPE buffer pads are placed at intervals between each bundle of sheets, and anti-collision corners are installed at the corners

5. Environmental protection upgrading and future trends

5.1 Green manufacturing breakthrough

Waste acid regeneration system: 98% HCl recovery, tons of steel acid consumption from 35kg to 1.2kg

Zinc ash recovery device: Using cyclone separation + electrostatic adsorption technology, metal recovery of 95%

Low temperature galvanizing process: the temperature of zinc liquid is reduced from 460 ° C to 420 ° C, and the energy consumption is reduced by 18%

5.2 Technology development direction

Ultra-wide production: Development of 5 x 10 ft specifications to reduce building seams (pilot production 2025)

Intelligent coating control: AI algorithm adjusts the parameters of the air knife in real time, and the thickness control accuracy is up to ±1g/m²

Functional composite: Developed photovoltaic galvanized sheet (PV-Zn), the conversion efficiency reached 8.5%

Conclusion

As an industrial standard product, 4×8 galvanized steel plate is undergoing a transformation from basic anti-corrosion materials to multi-functional composite materials. With the popularization of zinc-aluminum-magnesium alloy coating, intelligent cutting system and other technologies, the application of this specification product in new energy vehicle battery shell, photovoltaic building integration and other emerging fields has increased by 25% annually. It is expected that by 2026, the global market size of 4×8 galvanized steel plate will exceed 18 billion US dollars, of which China's production capacity is expected to reach 52%.
